ZP - Sereies Rotary Tablet Press Machine Simple Structure Automatic

Brand Name : LTPM China

Model Number : ZP-Sereies

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiation

Payment Terms : 30% TT as deposit and 70% before shipping

Supply Ability : 25 sets/Month

Delivery Time : In 25 days after receiving the deposit

Packaging Details : Wooden Case

Maximum tablet pressure : 150 kN

Maximum tablet diameter : 38 mm

Maximum filling depth : 18-35mm

Maximum production capacity : 15300 pieces/h

Power supply : 380/50 V / Hz

Main motor power : 7.5 kW

Warranty : 5 years

Key Selling Points : Easy to Operate

Contact Now

Automatic high-speed rotary tablet press machine
Made of Stainless steel for all material contact parts in strict compliance with GMP requirements.
Basic devices:
a. PLC control system integrate with 10 inch siemens touch screen,PLC
b. One set change mould
c. Dust collector
ZP - Sereies Rotary Tablet Press Machine Simple Structure Automatic
Features:
1. Conform to GMP requirements
2. Flameless windows installation safety glass(thick:20mm)
3. Singel-side outlet
4.Main pressure 80KN
5.Pre-pressure 20KN
6.Feeding motor adopts frequency control of speed
7. Automatic control tablet weight
8. Rejected one tablet and more pieces of tablets
9. Overloading,punch tight and insufficient lubrication,can to proted
10. Suit for round tablets, irregular tablets

ZP - Sereies Rotary Tablet Press Machine Simple Structure Automatic

Product Specifications

Rotary Tablet Press Machine
Capacity
60000-85000 tablets/hour
Rotary speed of the turret
14-30 rpm
Max. Filling Depth
17 mm
Max.Dia of tablet
28 mm
Max.Thickness of tablet
7 mm
Max. pressure
80 KN
Power supply
380V 50Hz / 220V 60Hz
Power consumption
3 kw
Quantity of punching station
23 stes
Weight
2000 kgs
Overall dimension
1300×1400×1850 mm

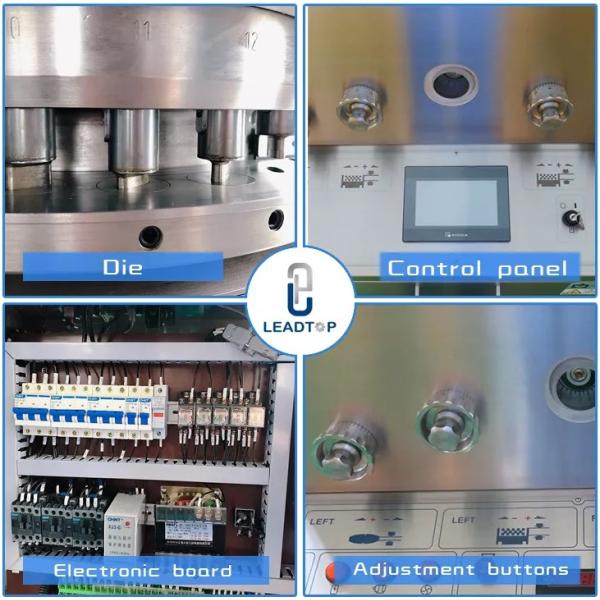

Machine Details

ZP - Sereies Rotary Tablet Press Machine Simple Structure Automatic

Main Application

This press is a double pressing tablet press,being broadly used in the industries of pharmacy,food process and chemicals, to make granular materials, to various round tablets or special-shaped tablets.

ZP - Sereies Rotary Tablet Press Machine Simple Structure Automatic

ZP - Sereies Rotary Tablet Press Machine Simple Structure Automatic

LTPMCHINA Can Do !
LTPMCHINA provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, LTPMCHINA carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, LTPMCHINA creates value to customers.
